Four Pillars of Grid Intelligence
Advanced sensors for comprehensive grid monitoring — from corona discharge to ice accumulation.

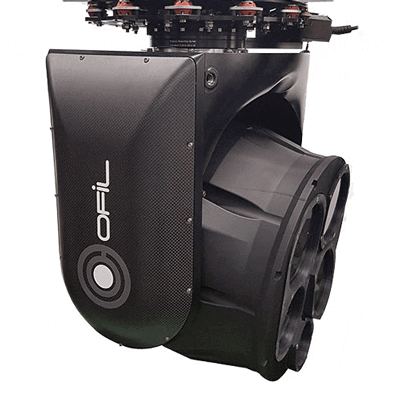

OFIL Corona Detection
"See the Invisible Discharge"

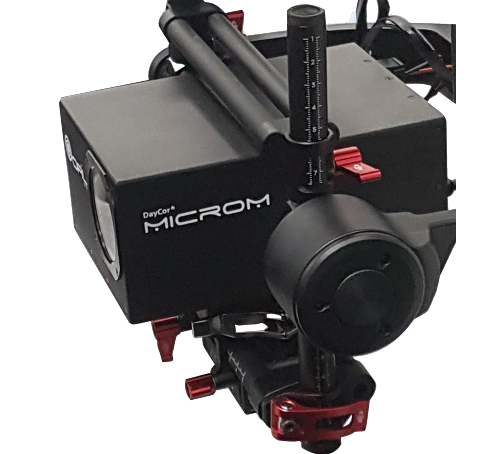

Solar-blind UV technology (DayCor®) enables precise, real-time detection of corona partial discharges and arcing in full daylight. Identify failing insulators, damaged conductors, and faulty connections before they cause outages. Industry-leading sensitivity at 1pC @ 12m.
| Technical Specifications | |
|---|---|
| Technology | Solar-blind UV (DayCor®) — below 280nm |
| Detection | Corona, Partial Discharge, Arcing |
| Sensitivity | 1 pC @ 12m (Eurotest certified) |
| Range | 50-70 meters safe inspection distance |
| Operation | Full daylight, no sun interference |

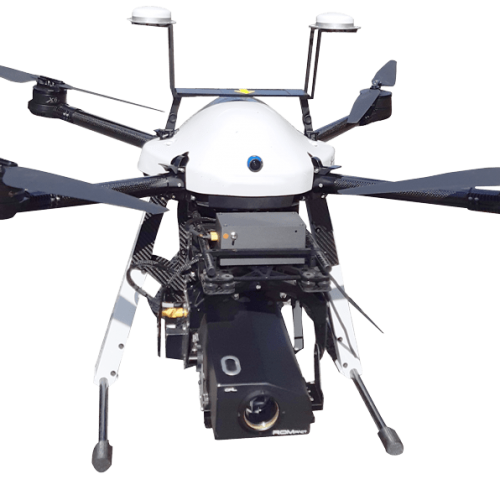

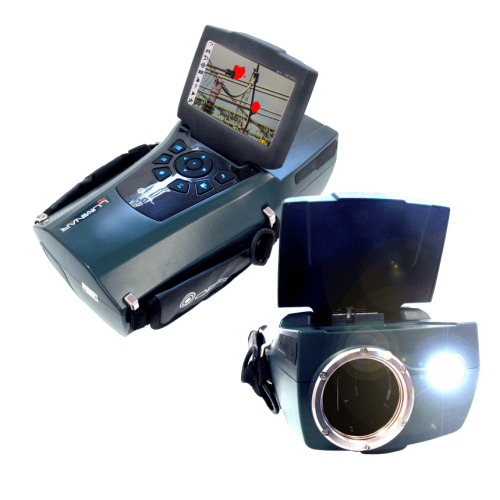

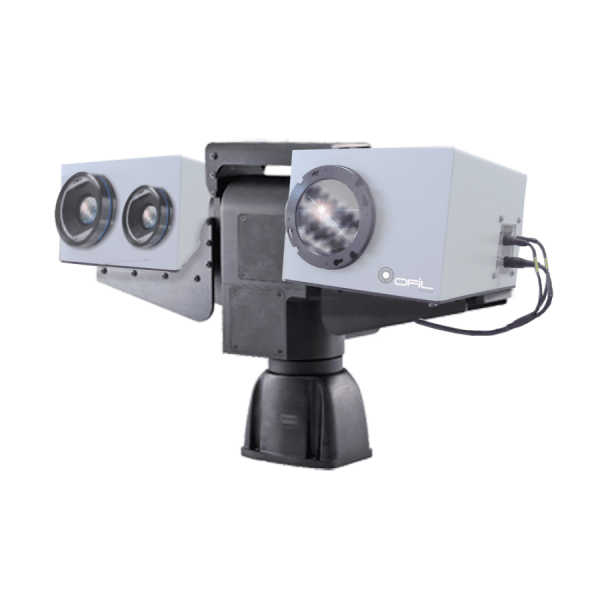

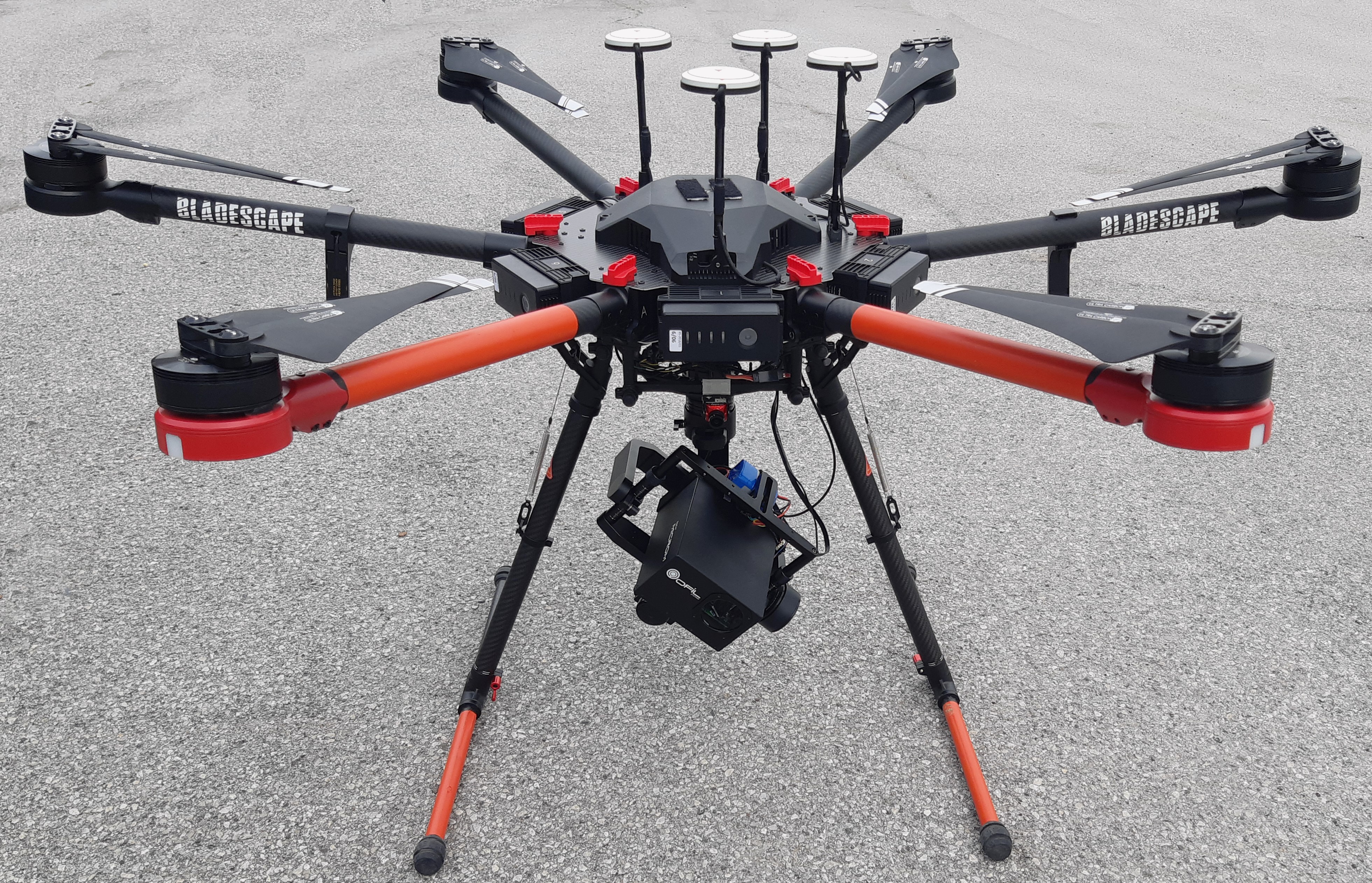

| Platforms | Handheld, Drone, Helicopter, Fixed |
Use Cases

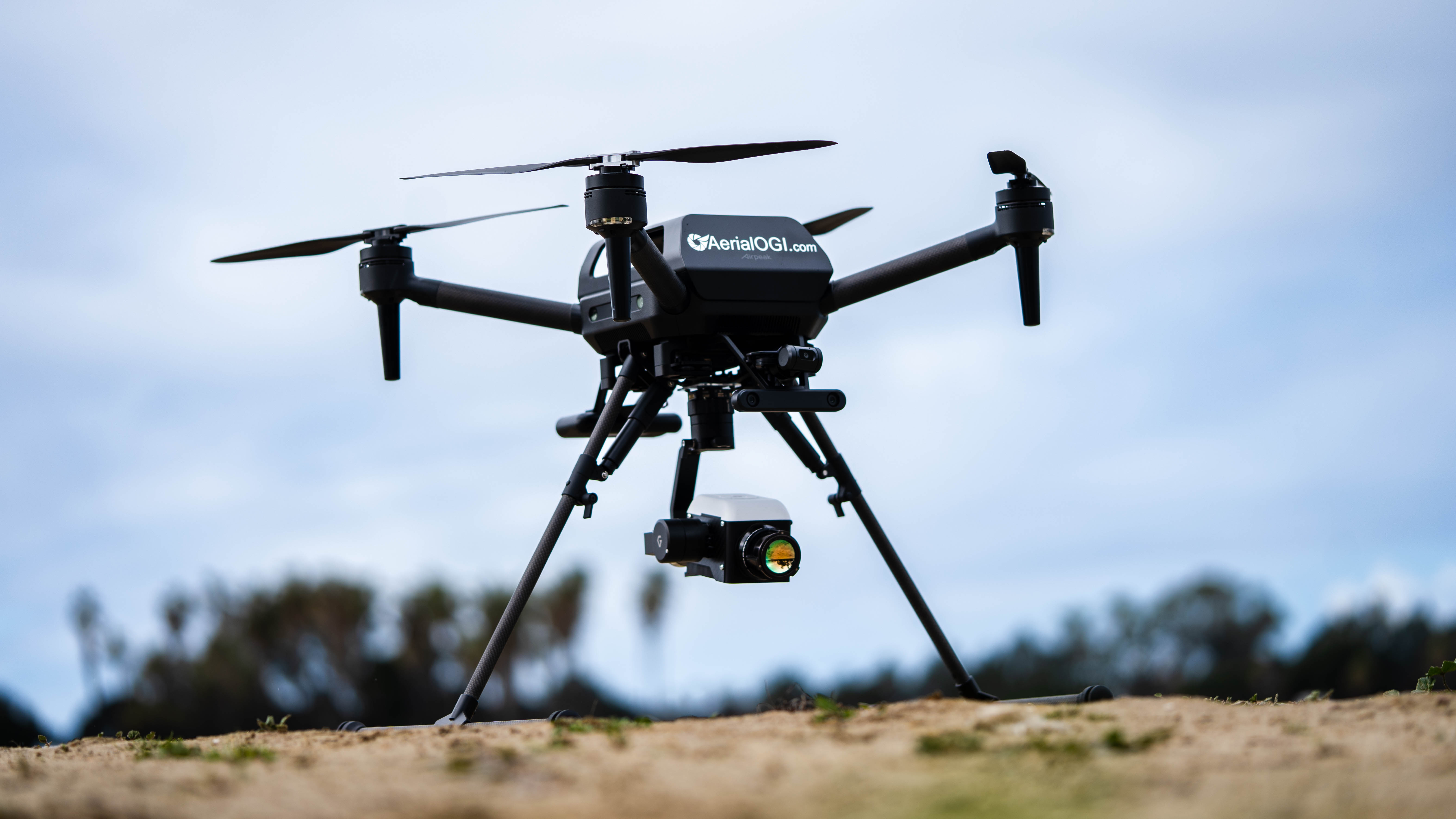

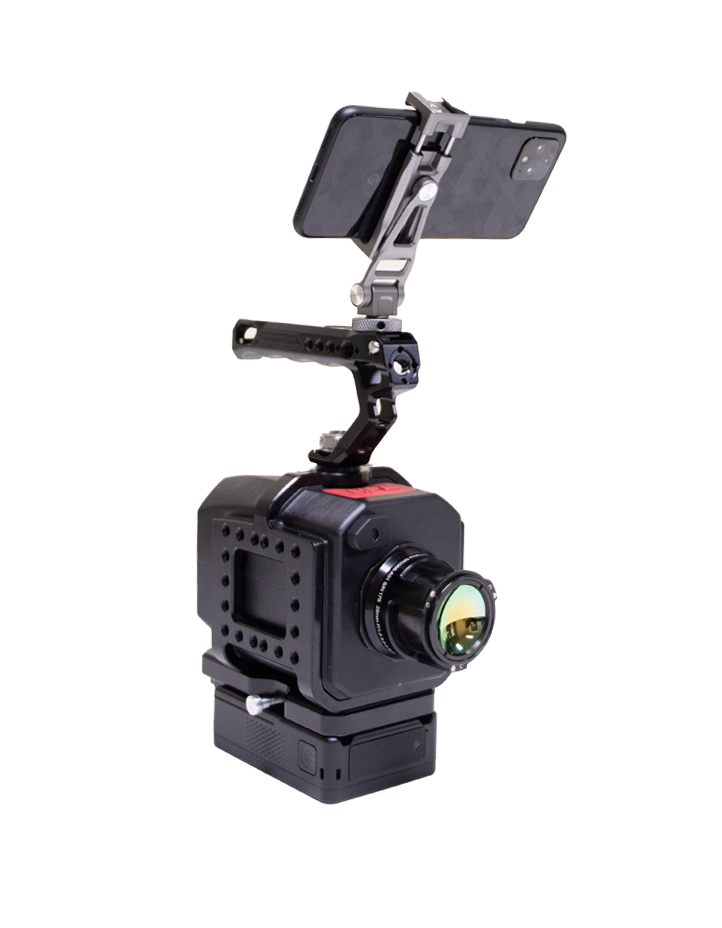

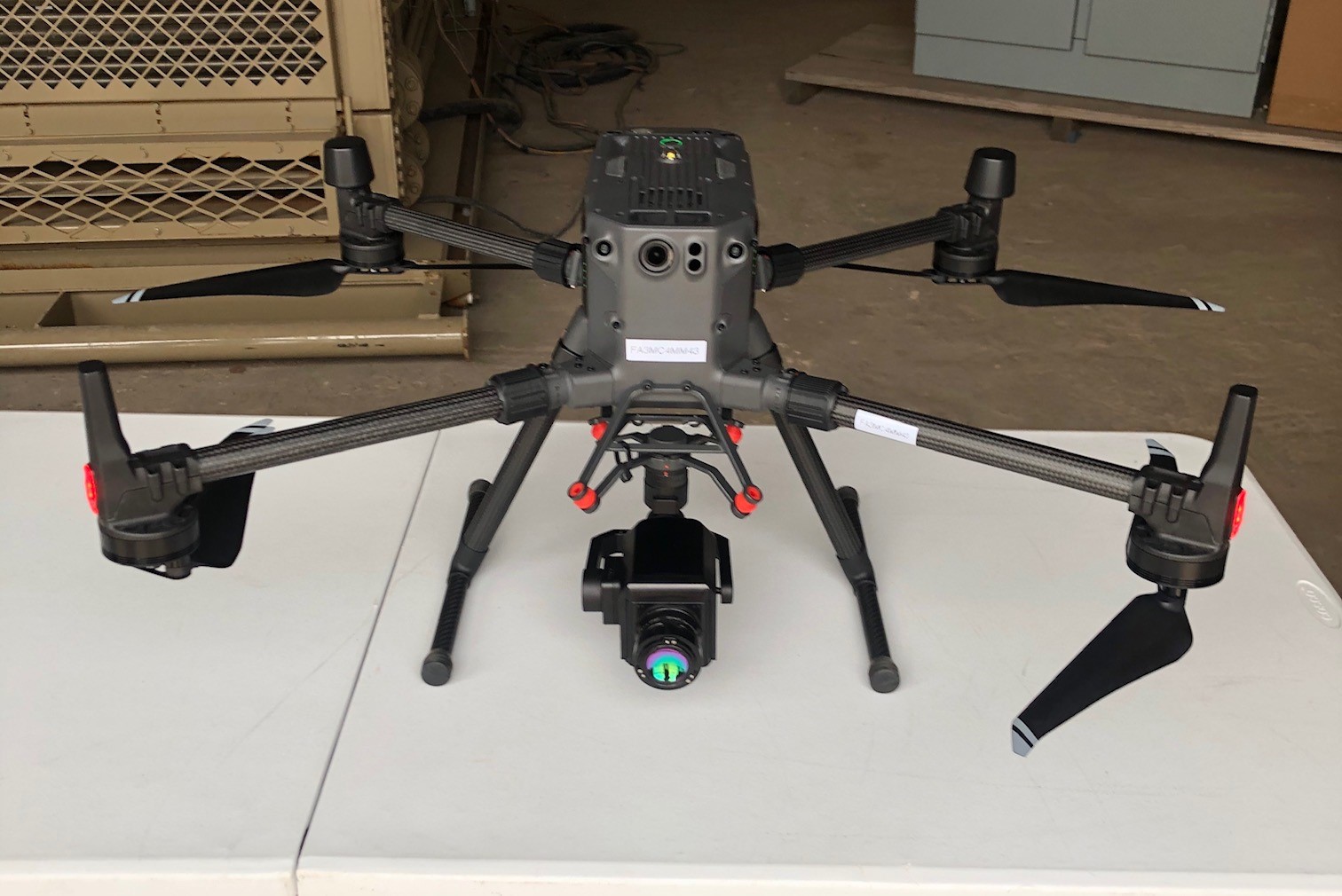

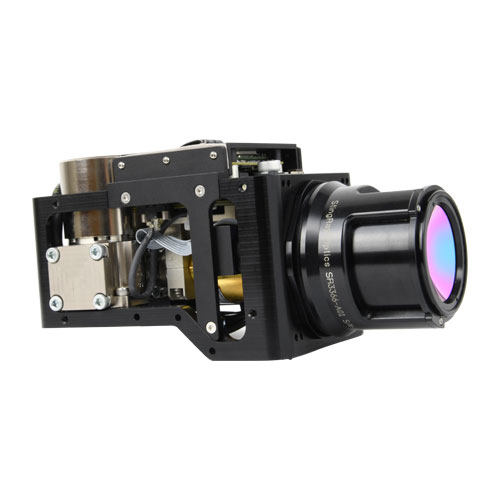

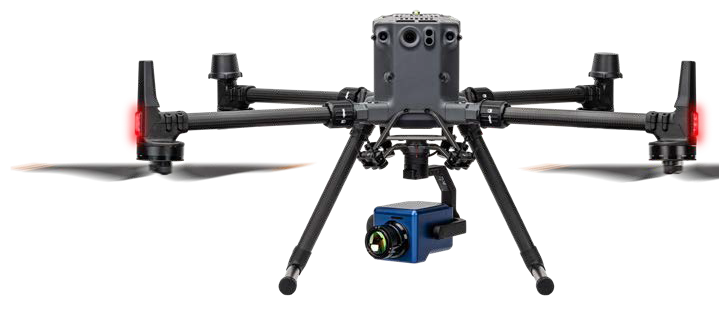

OGI Gas Imaging
"Visualize the Invisible Leaks"
Optical Gas Imaging cameras use specialized infrared technology to detect and visualize fugitive gas emissions in real-time. See methane, SF6, VOCs, and 400+ industrial gases as visible smoke plumes. Essential for substation SF6 monitoring and environmental compliance.
| Technical Specifications | |
|---|---|
| Technology | MWIR Infrared (3-5µm spectrum) |
| Detectable Gases | Methane, SF6, VOCs, 400+ compounds |
| Sensitivity | 0.28 kg/h @ 91% probability |
| Resolution | 640 x 512 HD thermal imaging |
| Compliance | EPA OOOOa/b/c, OGMP 2.0 Level 5 |

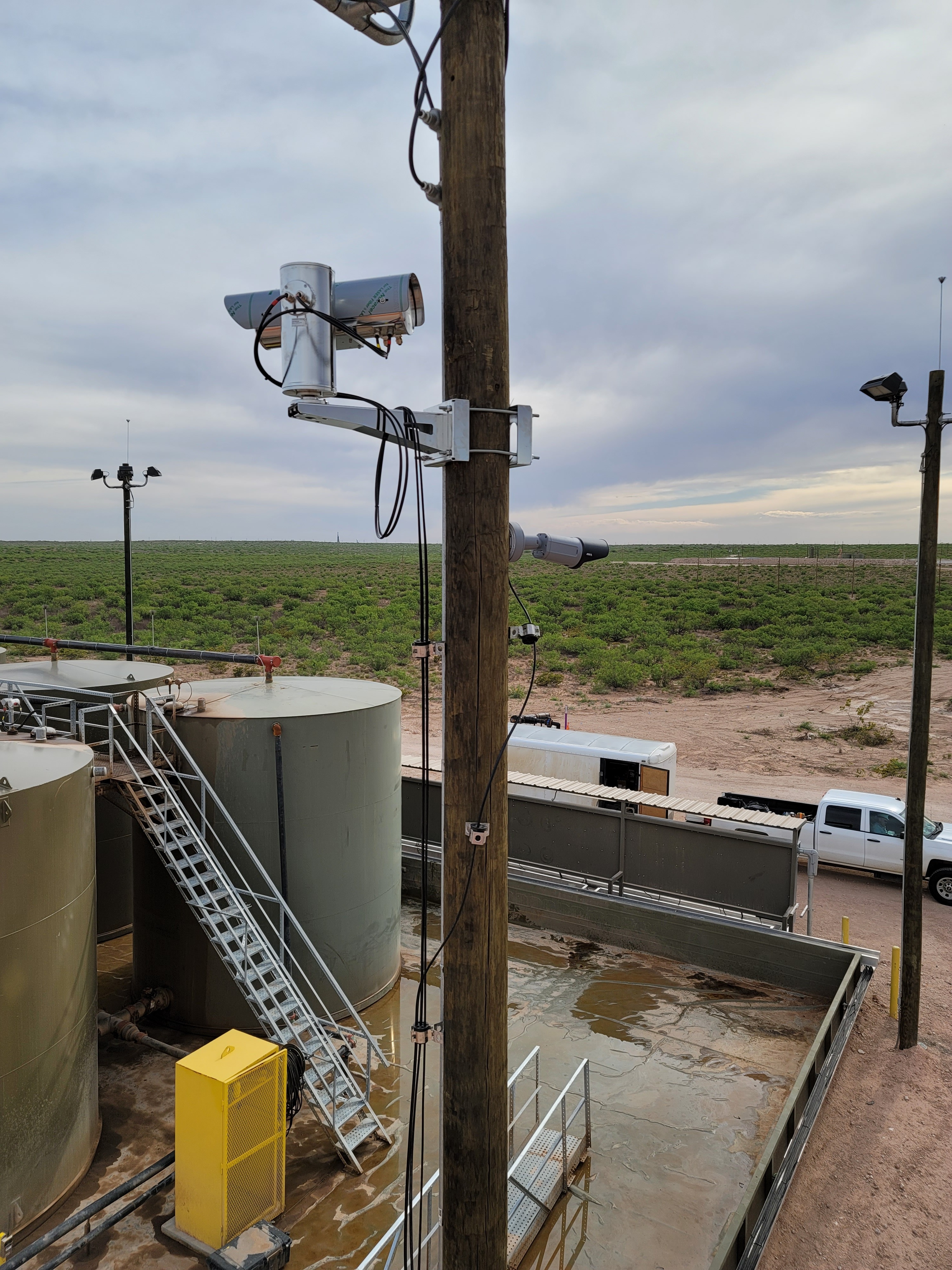

| Operation | 24/7 continuous or portable inspection |
Use Cases
Ice Detection
"Prevent Before the Storm"
Real-time ice accumulation monitoring for transmission lines. Capacitive sensors, AI-powered cameras, and fiber optic systems detect early-stage ice buildup before it compromises safety. Proven in extreme climates: Norway, Canada, Iceland. Line-powered, satellite-connected.
| Technical Specifications | |
|---|---|
| Technology | Capacitive + Optical + FBG sensors |
| Measurements | Ice thickness, sag, tension, temperature |
| Accuracy | RMSE 1.20mm, 98.35% detection rate |
| Power | Line-powered (self-sufficient) |
| Communication | Satellite / LTE / LoRa |
| Environment | -40°C to +60°C, IP67 |
Use Cases
Dynamic Line Rating
"Maximize Grid Capacity"
Dynamic Line Rating systems measure real-time conductor temperature, ambient conditions, and wind speed to calculate actual transmission capacity. Unlock 10-30% additional capacity over static ratings without infrastructure upgrades. FERC Order 881 compliant.
| Technical Specifications | |
|---|---|
| Measurements | Conductor temp, ambient, wind, solar |
| Capacity Gain | 10-30% over static rating |
| Update Rate | Real-time (1-15 minute intervals) |
| Compliance | FERC Order 881, IEEE 738 |
| Integration | SCADA, EMS, market systems |
| ROI | Deferred capital, congestion relief |
